Corn Head and Tail Removing Machine | Corn Cutter Machine

For processing fresh sweet corn, the corn top and tail cutting machine and the corn cutter machine work in tandem as indispensable core equipment. Not only do they significantly reduce manual labor and enhance processing efficiency, but they also ensure uniform and neat corn cuts, laying a solid foundation for subsequent stages of processing, packaging, or cooking.

Whether in commercial food processing plants or large-scale production lines, these two machines flexibly adapt to varying capacity demands, bringing higher automation levels and consistent quality to your production process.

Applications of corn cutter machine

• Commercial food processing plants handle large-scale processing of fresh sweet corn.
• Pre-processing and cutting stages for frozen, canned, or fresh-to-eat corn products.
• Central kitchens or food service processing facilities requiring uniform corn cobs or kernels for cooking and packaging.
• Vegetable processing lines capable of handling carrots and other vegetables.
• Any processing environment seeking to enhance production efficiency, reduce manual labor, and ensure consistent product cutting.
• Single-row or dual-row capacity options provide flexible solutions for varying production scales.

Corn head and tail removing machine

The corn end trimmer is primarily designed to swiftly and neatly remove the top and bottom ends of fresh corn cobs. This equipment is suitable for frozen or canned corn production lines, ensuring each cob is cut uniformly and neatly to provide high-quality raw materials for subsequent cutting, packaging, or cooking processes. The machine can be configured in single-row or dual-row modes to flexibly accommodate varying production capacity requirements.

Machine advantages

• Automated processing: chain-fed trays combined with rotating blades enable continuous corn feeding and cutting, reducing manual labor.
• High-precision cutting: laser marking aids workers in quickly adjusting corn positioning to ensure accurate head and tail trimming.
• Customizable capacity: single-row or dual-row designs offer flexible selection based on production line scale.
• Labor cost savings: automated operation reduces manual cutting time and boosts overall production efficiency.
• Safety and reliability: rational equipment structure with comprehensive blade safety guards ensures straightforward operation.
• Wide applicability: designed specifically for sweet corn while accommodating cutting needs for other similar stalk vegetables.

Working principle

1. Workers place fresh sweet corn into the chain-fed tray, where the corn is sequentially conveyed into the cutting zone.
2. Rotating blades first cut one end of the corn, removing either the top or bottom.
3. Using laser markings, workers quickly reposition the corn to align the opposite end with the blades for cutting, completing the separation of both ends.
4. The cut corn is transported via the discharge port to subsequent processes such as segmenting, packaging, or cooking.
5. Depending on production capacity requirements, multiple ears can be processed simultaneously to enhance efficiency.

Technical parameters

Single-row type

• Output: 3000 pieces/hour
• Dimensions: Length 3000mm × Width 800mm × Height 1500mm
• Power: Cutting 1: 1.5KW Cutting 2: 1.5KW Variable-frequency Conveyor: 0.75KW
• Sheet + Frame: 304 Stainless Steel

Double-row type

• Dimensions: 7000mm x 1700mm x 1900mm
• Motor: 1.5KW x 3 units
• Conveyor Motor: 1.5KW x 1 unit
• Operation: Variable Frequency Speed Control
• Feeder: 1.1KW x 1 unit
• Trough + Frame: SUS304 Stainless Steel

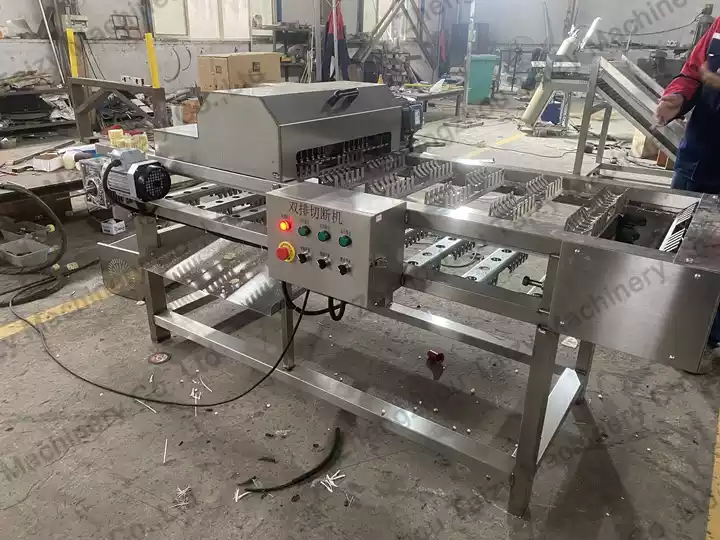

Fresh corn cutter machine

The corn cutter machine is designed to slice corn cobs, with ends trimmed, into uniform segments for subsequent quick-freezing, canning, or fresh food processing. Constructed from 304 stainless steel, the equipment allows for direct rinsing during cleaning.

Corn cutter features

• High-efficiency cutting: rapidly and continuously slices corn cobs into uniform segments, reducing manual labor.
• Adjustable cutting length: segment length freely adjustable, with a minimum length of 2.5 cm to accommodate various product specifications.
• Multi-functional application: suitable for sweet corn and frozen corn, also processes other stick-shaped vegetables like carrots.
• Flexible capacity: single-row or dual-row configurations available for flexible selection based on production scale.
• Stable and safe: rational equipment structure with comprehensive blade protection ensures simple and reliable operation.

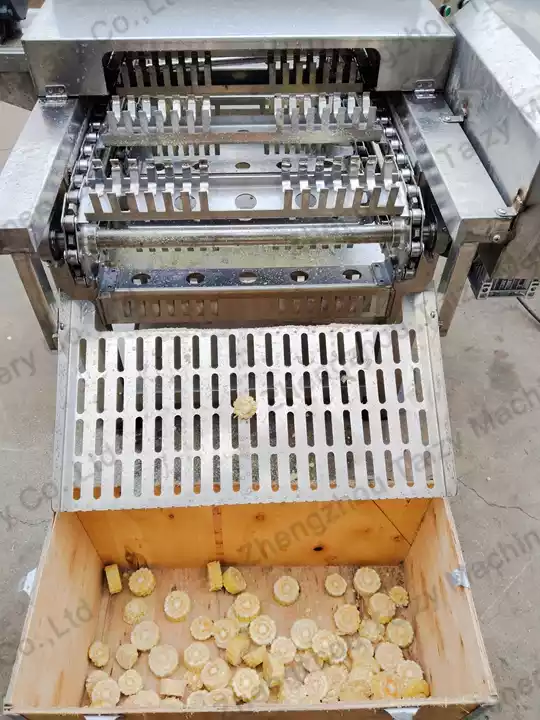

Working process

1. Place trimmed corn cobs into the feed inlet, where they are conveyed to the cutting zone.
2. The automatic feeding mechanism directs the corn into the rotating blades or cutting blade assembly.
3. The blades cut the corn into segments at a preset length, ensuring uniform size for each piece.
4. The cut corn segments are transported through the discharge outlet to subsequent processes such as packaging, quick-freezing, or cooking.

Technical data

• Dimensions: 2600*750*1200mm
• Motor: 0.55KW*1 unit 2.2kW*1 unit
• Output: 3000-4000 pieces/hour
• Frame + Guard Plate: 304 Stainless Steel

Looking to boost corn processing efficiency, reduce labor costs, and ensure product quality? Contact us today for detailed information, solutions, and quotes on corn trimming machines and corn cutter machines—making your production line more efficient and smarter!
